Product Features & Advantages

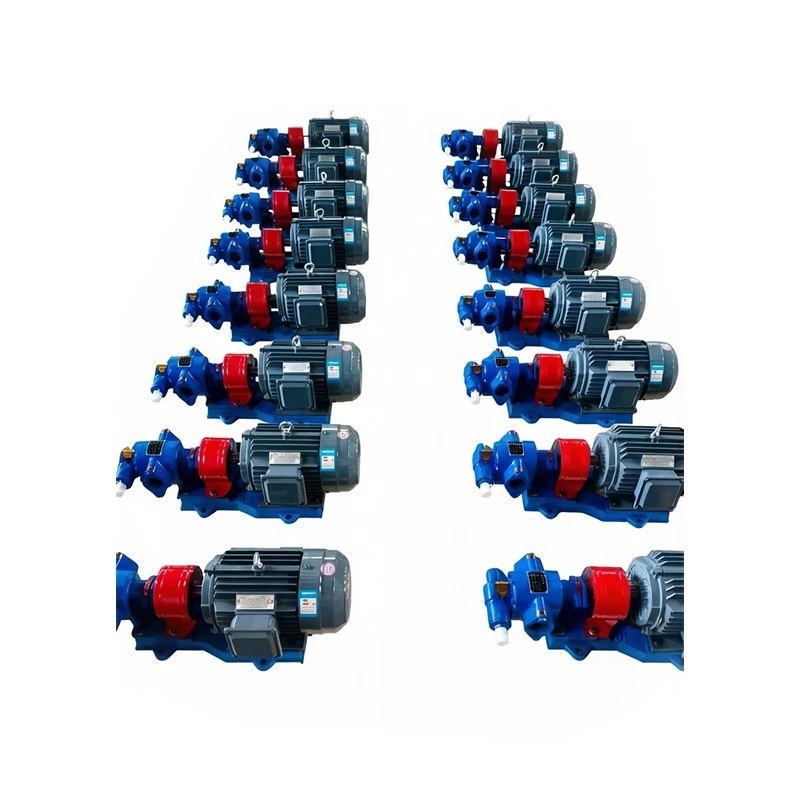

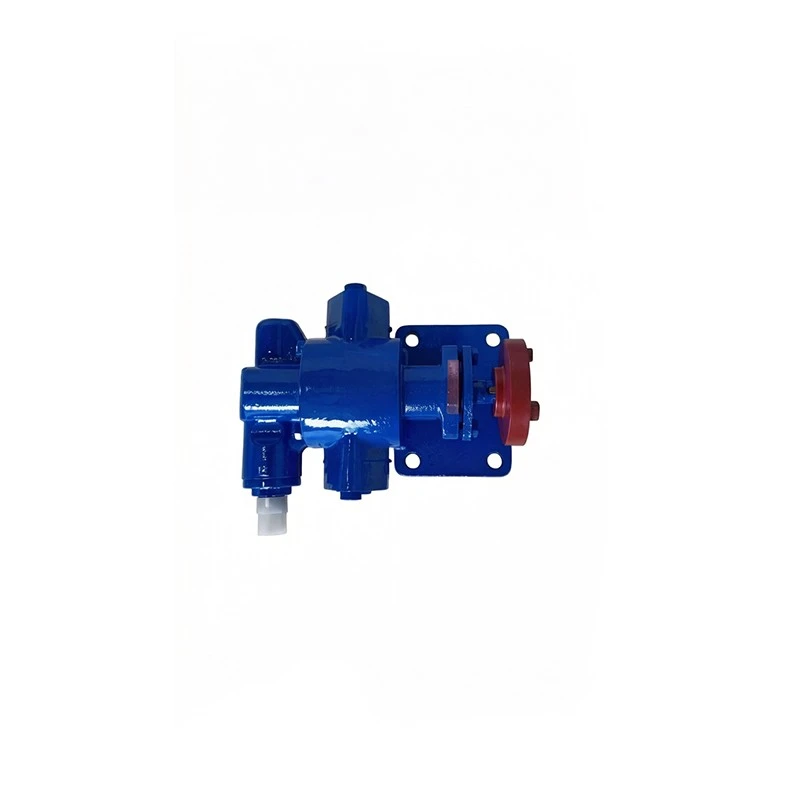

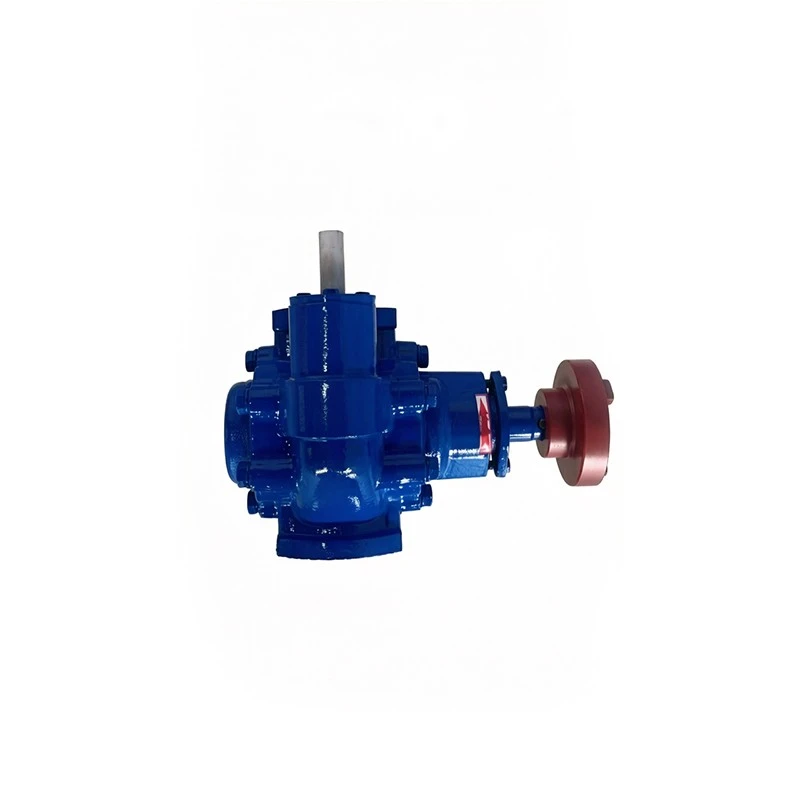

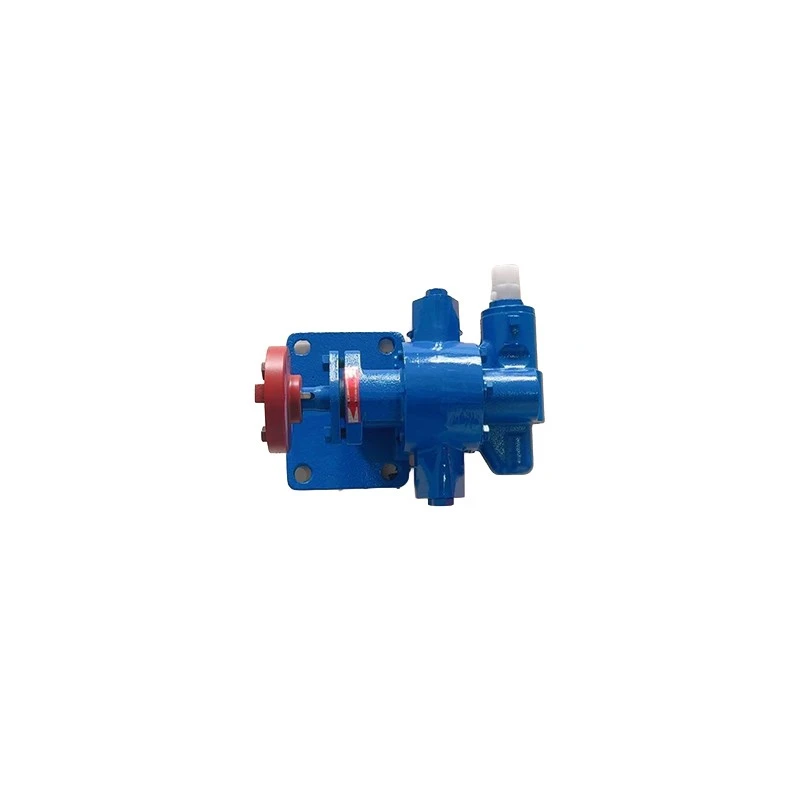

The KCB gear pump adopts an external meshing positive displacement structure with a compact overall design, making installation and maintenance simple and convenient.
The core gears are processed through professional heat treatment technology, providing high hardness, excellent wear resistance, low operational wear, and long service life. The built-in safety valve offers automatic overload protection, effectively preventing equipment damage caused by excessive pipeline pressure.
Our KCB Gear Pump features a well-designed sealing structure with excellent self-priming capability, stable fluid delivery, and low operating noise. It is suitable for long-term continuous transportation of common oil-based media and ensures smooth and reliable performance in industrial working environments.
Application Industries
The KCB Gear Pump is widely used in:
Petrochemical industry
Oil depots and terminal facilities
Marine and shipping systems
Mechanical manufacturing
Grain and edible oil processing
Metallurgy and power plants
It can serve as:
Oil transfer booster pump
Fuel delivery pump
Lubrication pump for machinery equipment
Suitable conveying media include lubricating oil, diesel oil, crude oil, and other non-corrosive liquids without solid particles.
Company Supporting Advantages
Botou Hengyang Pump & Valve owns a large-scale manufacturing workshop equipped with CNC lathes, gear hobbing machines, grinding machines, and other precision processing equipment, enabling independent production of core pump components.
Before shipment, all products undergo 100% comprehensive performance testing and support third-party inspection requirements. Backed by three patented pump technologies and strict industrial-grade manufacturing standards, the company maintains sufficient inventory and efficient delivery capability for fast shipment of ready-stock products.
Basic Parameters
|
Parameter Item |
Specification Range |
|
Flow Rate Range |
1.1–570 m³/h |
|
Rated Pressure |
0.33–1.45 MPa |
|
Medium Temperature |
≤80°C (standard) / ≤300°C (customized) |
|
Common Materials |
Cast iron, stainless steel, copper alloy |
|
Drive Method |
Direct motor drive, coupling transmission |
|
Speed Range |
1400–1420 r/min |
