Diaphragm Pump Models and Technical Specifications
Our diaphragm pump range includes pneumatic and electric models, with product-specific flow rates from 0.05 to 150 m³/h and working pressures from 0.15 to 0.8 MPa. As a China diaphragm pump manufacturer, we offer different pump body and diaphragm material options for transferring waste oil, high-viscosity liquids, and corrosive chemicals. Each model has its own operating range and material configuration, allowing distributors and industrial equipment buyers to select products according to their actual fluid transfer requirements.
Different diaphragm pump models have different operating ranges and material configurations. The following specifications belong to their respective products and are not universal specifications for the entire diaphragm pump range.
-
Compact Small Electric Diaphragm PumpOur Compact Small Electric Diaphragm Pump is intended for liquid-transfer installations where available space and lower flow requirements influence equipment selection. Its direct electric drive...
-
Stainless Steel Pneumatic Diaphragm PumpOur Stainless Steel Pneumatic Diaphragm Pump is designed for compatible liquid-transfer duties where stainless steel construction and compressed-air drive are required. It is a candidate for...
-

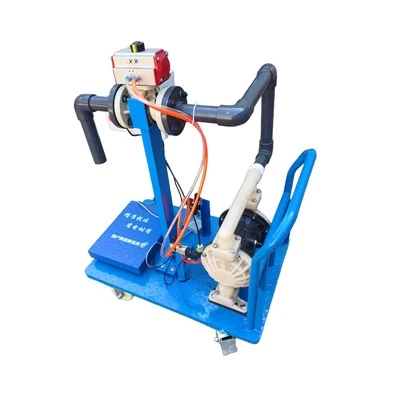

High Viscosity Thick Liquid Diaphragm PumpOur High Viscosity Thick Liquid Diaphragm Pump is intended for transferring compatible thick liquids that require careful consideration of flow resistance and passage dimensions. The design uses...
-
Waste Oil Diaphragm Pump For RecoveryOur Waste Oil Diaphragm Pump for Recovery is designed for transferring compatible used oils and oily liquids during collection, equipment servicing, and industrial recovery operations. Its...
-
Air Driven Diaphragm PumpOur Air Driven Diaphragm Pump uses compressed air as the power source for transferring compatible industrial liquids. It is intended for plants that need a pneumatic pumping arrangement and want...
-
Air Operated Diaphragm PumpOur Air-Operated Diaphragm Pump uses compressed air to drive liquid transfer through a reciprocating diaphragm mechanism. It is intended for industrial sites that prefer pneumatic drive and need...
-
Electric Transfer PumpOur Gas-Free Diaphragm Pump page is positioned around electrically driven liquid transfer for facilities where installing a separate compressed-air system would add unnecessary complexity. The...
-
Aluminum Alloy Diaphragm PumpOur Aluminum Alloy Diaphragm Pump is intended for liquid-transfer installations where equipment weight and installation space are important considerations. Its body is made using aluminum alloy...
-
Electric Diaphragm PumpOur Motor-Driven Diaphragm Pump uses an electric motor to operate the pumping mechanism. It is intended for facilities that need diaphragm-based liquid transfer but do not have a convenient...
-
Chemical Diaphragm PumpOur Corrosion-Proof Diaphragm Pump is designed for transferring compatible chemical solutions, corrosive liquids, and industrial wastewater. It can be considered for chemical processing,...
-
Chemical Resistant Diaphragm PumpThe chemical resistant diaphragm pump is designed with flow-through components made of PTFE (Teflon), fluoroplastics, and corrosion-resistant rubber materials. It is capable of withstanding strong...
-

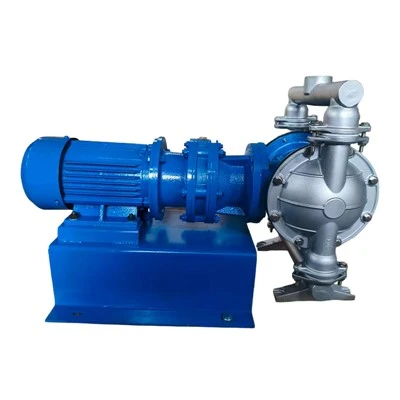

Aro Electric Diaphragm PumpThe electric diaphragm pump adopts a motor direct-drive structure, eliminating the need for an external air source. This design allows flexible installation and is not limited by compressed air...
| Product Model | Flow Rate | Working Pressure | Additional Specifications |
|---|---|---|---|
| Aluminum Diaphragm Pump | 0.2–120 m³/h | 0.2–0.8 MPa | Medium temperature: -5°C to 90°C; maximum particle size: ≤8 mm |
| Waste Oil Diaphragm Pump | 0.3–100 m³/h | 0.2–0.7 MPa | Maximum solid particle size: ≤12 mm; medium temperature: 0–90°C |
| High Viscosity Thick Liquid Diaphragm Pump | 0.1–90 m³/h | 0.2–0.75 MPa | Medium temperature: -5°C to 120°C |
| Airless Diaphragm Pump | 0.1–80 m³/h | 0.2–0.7 MPa | Medium temperature: -10°C to 110°C; direct electric motor drive |
| Stainless Steel Pneumatic Diaphragm Pump | 0.2–130 m³/h | 0.2–0.8 MPa | Self-priming height: 4–7 m; medium temperature: -20°C to 150°C |
| Chemical Resistant Diaphragm Pump | 0.2–120 m³/h | 0.2–0.8 MPa | Self-priming height: 4–6 m; pneumatic drive |
Pneumatic and Electric Diaphragm Pump Options
We offer pneumatic and electric diaphragm pumps for different site power conditions.
| Product Model | Drive Configuration | Available Specifications |
|---|---|---|
| Air Operated Diaphragm Pump | Compressed-air driven | Air supply pressure: 0.2–0.8 MPa; flow rate: 0.3–150 m³/h |
| Air Driven Diaphragm Pump | Compressed-air driven | Flow rate: 0.2–130 m³/h; working pressure: 0.2–0.8 MPa; self-priming height: 4–6 m |
| Airless Diaphragm Pump | Direct electric motor drive | Flow rate: 0.1–80 m³/h; no external compressed-air supply required |
| Small Electric Diaphragm Pump | Direct electric motor drive | Flow rate: 0.05–30 m³/h; working pressure: 0.15–0.6 MPa; maximum particle size: ≤5 mm; medium temperature: -5°C to 95°C |
Pneumatic diaphragm pumps use compressed air as their driving source. Electric diaphragm pumps use direct motor drive and do not require an external compressed-air system.
Pump Body and Diaphragm Material Options
Material configurations vary by product model. Our documented options include:
| Product Model | Pump Body / Wetted Material Options | Diaphragm Options |
|---|---|---|
| Aluminum Diaphragm Pump | Aluminum alloy | Rubber / PTFE |
| Waste Oil Diaphragm Pump | Cast iron / aluminum alloy | Wear-resistant rubber |
| High Viscosity Thick Liquid Diaphragm Pump | Stainless steel and other listed material options | PTFE / corrosion-resistant rubber |
| Stainless Steel Pneumatic Diaphragm Pump | 304 / 316L stainless steel | Model-dependent |
| Chemical Resistant Diaphragm Pump | PTFE / fluoroplastics / corrosion-resistant rubber | Model-dependent |
For chemical transfer, the wetted material combination must be selected according to the actual liquid. The listed materials do not guarantee compatibility with every chemical concentration or operating temperature.
Diaphragm Pump Customization and OEM Supply
We support OEM/ODM orders and private-label production. Custom manufacturing can be discussed based on customer drawings or samples.
Available customization areas include:
- Pump body material
- Diaphragm material
- Connection details and interface dimensions
- Installation requirements
- Product configurations based on drawings or samples
Available material options include aluminum alloy, cast iron, 304 and 316L stainless steel, PTFE, fluoroplastics, and corrosion-resistant rubber, subject to the selected model.
Manufacturing and Supply for Wholesale Orders
We support diaphragm pump orders for distributors, importers, and industrial equipment buyers.
- MOQ: 1 unit for the documented high-viscosity diaphragm pump offer.
- Mixed-model orders: Supported for the documented high-viscosity diaphragm pump offer.
- Standard model stock: Year-round stock is stated for standard models on the same product offer.
- OEM/ODM: Private-label production and drawing- or sample-based manufacturing are supported.
- Export packaging: Reinforced wooden crates.
- Trade terms: EXW, FOB, and DDP.
- Inspection: The stainless steel air diaphragm pump offer states 100% pre-shipment inspection, including pressure testing, sealing performance checks, and operational verification.
These supply conditions belong to the respective product offers and should be confirmed for the selected model and order quantity.
Request a Diaphragm Pump Quotation
Send us your required flow rate, working pressure, fluid name, operating temperature, preferred drive type, material requirements, and purchase quantity.
If you already have a pump specification sheet, product sample, or reference photos, send them directly. We will use the available information to identify a suitable diaphragm pump model, discuss the required material configuration, and prepare a quotation for your order.
