Botou Hengyang Pump & Valve Co., Ltd. is a rotary lobe pump manufacturer in China supplying different pump configurations for hygienic transfer, viscous fluids, and industrial applications involving particles or fibrous materials. The product range includes Sanitary Rotary Lobe Pumps, Cam Rotor Pumps, Stainless Steel Lobe Pumps, and High Viscosity Lobe Pumps.

Each series has its own operating ranges and configuration options. Selection should be based on the medium, required flow rate, working pressure, temperature, particle size, and material or hygiene requirements.


  • Corrosion Resistant Lobe Pumps
    Our Corrosion Resistant Lobe Pumps are designed for compatible corrosive liquids, viscous fluids, and selected process materials used in industrial production. They are intended for applications...
  • Food Processing Rotary Lobe Pump
    Our Stainless Steel Pneumatic Diaphragm Pump is designed for compatible liquid-transfer duties where stainless steel construction and compressed-air drive are required. It is a candidate for...
  • Solids Handling Cam Rotor Pump
    Our Solids Handling Cam Rotor Pump is designed for viscous liquids, slurries, sludge, and selected process fluids containing solid particles or fibrous material. It is intended for applications...
  • Cam Rotor Pump
    The cam rotor pump adopts a two-lobe or three-lobe cam rotor structure based on the positive displacement conveying principle. It delivers stable operation, constant flow output, and extremely low...

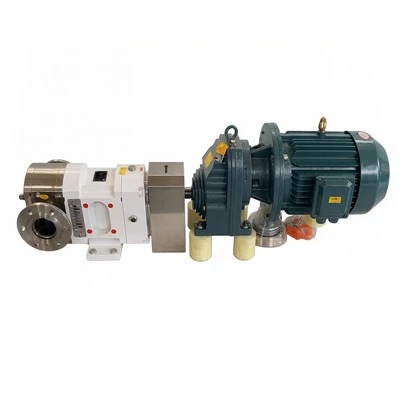

  • Sanitary Rotary Lobe Pump
    The sanitary rotary lobe pump is manufactured using food-grade stainless steel materials, with both internal and external surfaces mirror-polished to eliminate hygienic dead corners, residue...

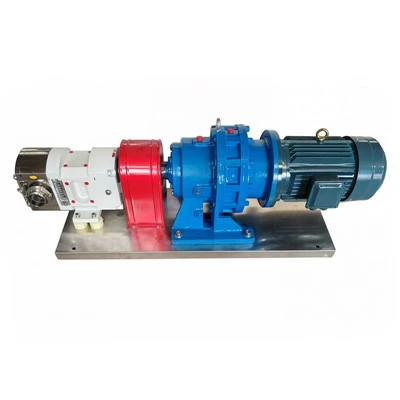

  • Stainless Steel Lobe Pumps
    Our stainless steel lobe pump is manufactured using integrated 304/316L stainless steel casting. It offers excellent corrosion resistance, strong tolerance to weak acids and alkalis, and is not...
  • High Viscosity Lobe Pump
    Our high viscosity lobe pump is specially designed for ultra-high viscosity, paste-like, slurry-like, and fiber-containing media. It adopts a large-displacement cam rotor structure with a wide and...


Rotary Lobe Pump Types and Applications

Pump Type Main Configuration Suitable Media and Applications
Sanitary Rotary Lobe Pump Food-grade stainless steel construction, food-grade rotors and sealing components, sanitary connections Juice, sauces, dairy products, edible oils, grain products, jam, syrup, and other materials handled in hygienic food and beverage production
Cam Rotor Pump Two-lobe or three-lobe cam rotor; supports forward and reverse operation Sludge, slurry, viscous oil, fibrous materials, and fluids containing large solid particles; used in petrochemical, wastewater treatment, food processing, pharmaceutical, and other industrial applications
Stainless Steel Lobe Pumps 304 or 316L stainless steel construction with a modular sealing structure Corrosive liquids, hygienic fluids, food-grade slurries, seawater, chemical intermediates, and high-viscosity materials
High Viscosity Lobe Pump Large-displacement cam rotor structure, wide flow channel, low-speed and high-torque operation Sesame paste, syrup, honey, latex, adhesives, asphalt paste, pharmaceutical ointments, and high-viscosity chemical slurries

Rotary Lobe Pump Specifications

The following ranges are listed for the respective product series. They are not combined ratings for every rotary lobe pump.

Product Series Flow Range Working / Rated Pressure Medium Temperature Other Selection Data
Sanitary Rotary Lobe Pump 0.3–160 m³/h 0.2–1.5 MPa -5°C to 150°C Food-grade construction; sanitary quick-clamp or flange connection
Cam Rotor Pump 0.5–200 m³/h 0.3–1.8 MPa -10°C to 180°C Maximum particle size ≤20 mm; two-lobe or three-lobe rotor; reversible operation
Stainless Steel Lobe Pumps 0.5–180 m³/h 0.3–1.7 MPa -15°C to 170°C 304 or 316L stainless steel; modular sealing structure
High Viscosity Lobe Pump 0.2–150 m³/h 0.3–2.0 MPa -10°C to 190°C Cast iron, 304 or 316 stainless steel; high-torque configuration for viscous media

The actual pump selection should be checked against the properties of the conveyed medium and the required operating conditions. Please provide the medium, viscosity, temperature, flow rate, and pressure when requesting a model recommendation.

Materials and Configuration Options

Material and structural options differ by product series.

  • Sanitary Rotary Lobe Pump: Food-grade stainless steel materials, including 304 and 316L options; food-grade rotor materials and sealing components; sanitary quick-clamp or flange connections.
  • Cam Rotor Pump: Two-lobe or three-lobe cam rotor structure, with forward and reverse operation. The listed maximum particle size is ≤20 mm.
  • Stainless Steel Lobe Pumps: 304 or 316L stainless steel construction and a modular sealing structure designed for replacement and maintenance.
  • High Viscosity Lobe Pump: Cast iron, 304, or 316 stainless steel material options; large-displacement cam rotor structure, wide flow channel, low-speed and high-torque operation, and a dedicated mechanical seal for high-viscosity service.

For hygienic applications, the sanitary series uses food-grade sealing components and supports quick-install sanitary connections. For viscous, paste-like, slurry-like, or fiber-containing media, the Cam Rotor and High Viscosity series provide different rotor and flow-channel configurations.

Customization and Manufacturing Support

Customization requirements depend on the selected pump series and operating conditions.

For the High Viscosity Lobe Pump, material and structural adjustments can be considered according to medium viscosity, temperature, and working conditions.

For Stainless Steel Lobe Pumps, the company supports OEM labeling, ODM customization, and drawing-based production. The listed minimum order quantity is one unit, and mixed-model orders are supported.

Before confirming a customized pump, please provide the operating conditions and any available drawings or sample details so that the required material, structure, and connection arrangement can be reviewed.

Manufacturing and Quality Control

The factory is equipped with CNC lathes, dedicated rotor machining equipment, heat treatment systems, and performance testing equipment for Cam Rotor Pump production.

The company states that pumps undergo pressure, sealing, and flow performance tests before shipment. These checks are relevant to the pump's operating requirements and should be considered alongside the selected model and configuration.

Supply and After-Sales Service

For the Stainless Steel Lobe Pumps series, the listed supply terms and services include:

  • Minimum order quantity: 1 unit
  • Mixed-model orders supported
  • Standard models kept in stock year-round
  • Export terms: EXW, FOB, and DDP
  • Export packaging: fumigated solid wood crates with reinforced protection
  • Complete-unit warranty: 12 months
  • Sealing-component warranty: 3 months
  • Online technical support: 24 hours
  • Spare parts supplied at cost price over the product's service life

These order and service details are listed for the Stainless Steel Lobe Pumps series and should not automatically be applied to every rotary lobe pump configuration.

Request a Rotary Lobe Pump Quote

To help identify a suitable rotary lobe pump, please provide the following information with your inquiry:

  • Medium name and properties, including viscosity and whether it contains particles or fibers
  • Required flow rate and working pressure
  • Operating temperature
  • Maximum particle size, if applicable
  • Required contact material, such as food-grade stainless steel, 304, 316L, or another specified material
  • Connection type and installation requirements
  • Required quantity and any drawing or sample available

With these details, the pump series, material, rotor configuration, and applicable operating range can be reviewed for your application.
