Screw Pumps for Industrial Fluid Transfer
Our industrial screw pump range covers single-screw, twin-screw, and triple-screw designs, with published flow rates from 0.01 to 350 m³/h across different product series. We offer solutions for industrial fluids including viscous liquids, lubricating oils, sludge, slurry, and other process media. Each series has its own operating range, so we match the pump structure and configuration to the actual fluid and working conditions.
-

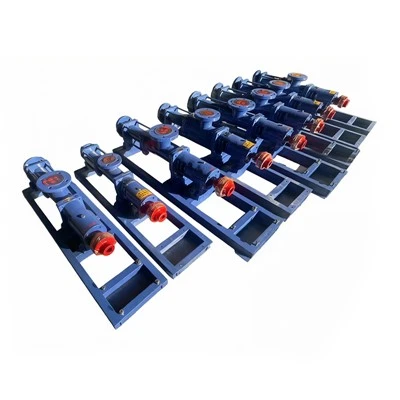

General Purpose Industrial Screw PumpsOur General Purpose Industrial Screw Pumps cover a range of screw-pump configurations for industrial liquid transfer, oil supply, lubrication, and circulation duties. The series helps...
-
Progressive Cavity Screw PumpOur Progressive cavity screw pump is designed for transferring sludge, slurry, paste, and other industrial fluids that may contain suspended solids or fibrous material. It is commonly considered...
-
Viscous Fluid Triple Screw PumpOur Viscous Fluid Triple Screw Pump is intended for viscous industrial liquids that require steady delivery and controlled pressure. It can be considered for oil processing, bitumen handling,...
-
High Capacity Hyghspin Twin Screw PumpOur High Capacity Hyghspin Twin Screw Pump is designed for industrial liquid-transfer lines that require high throughput and sustained operation. Its twin-screw structure moves compatible oils,...
-
Corrosion Resistant Stainless Steel Screw PumpOur Corrosion Resistant Stainless Steel Screw Pump is developed for industrial processes involving compatible corrosive liquids, viscous fluids, and selected particle-bearing media. Its...
-
Miniature Screw PumpOur Miniature screw pump is designed for small-volume, continuous liquid transfer where installation space is limited. Its rotor-and-stator mechanism forms moving cavities that carry liquid...
-
Lubrication High Pressure Screw PumpOur Lubrication High Pressure Screw Pump is designed for industrial systems that require pressurized oil delivery. Its three-screw structure moves liquid through the spaces formed by the screw...
-
High Pressure Screw PumpThe high pressure screw pump adopts a precision three-screw meshing structure, providing high operating pressure, stable output pressure, and extremely low flow pulsation for smooth and uniform...
-
Micro Screw PumpThe micro screw pump adopts an integrated single-screw micro structure design. The overall unit is compact in size and occupies extremely small installation space, offering flexible mounting...
-

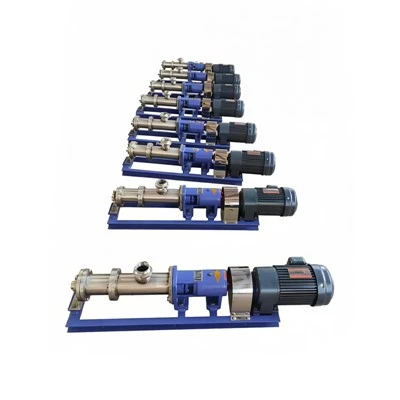

Stainless Steel Screw PumpThe stainless steel screw pump is manufactured using 304/316L stainless steel materials. It offers excellent resistance to acids, alkalis, and corrosion, with no metallic ion precipitation during...
-

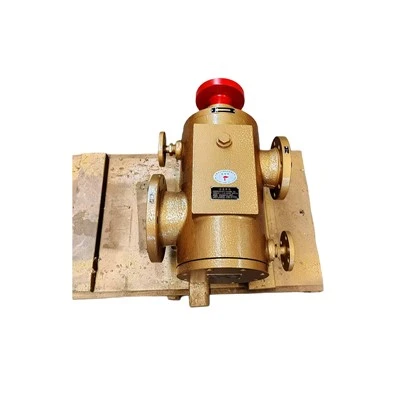

Hyghspin Twin Screw PumpThe high speed twin screw pump adopts a symmetrical twin-screw meshing structure with a professional high-speed design. It delivers high conveying efficiency, large flow capacity, and stable...
-

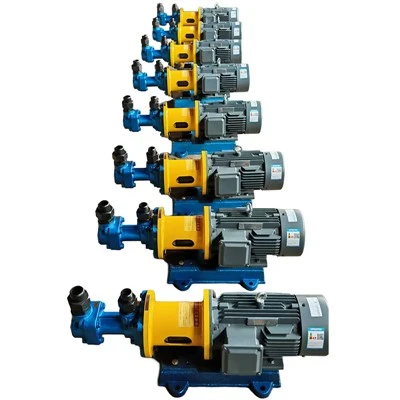

Triple Screw PumpThe high viscosity triple screw pump adopts a precision three-shaft synchronous meshing structure based on a positive displacement conveying principle, specially optimized for high-viscosity and...
Screw Pump Types and Their Applications
We supply several industrial screw pump designs for different fluid transfer requirements.
| Screw Pump Type | Product Configuration | Suitable Fluids and Applications |
|---|---|---|

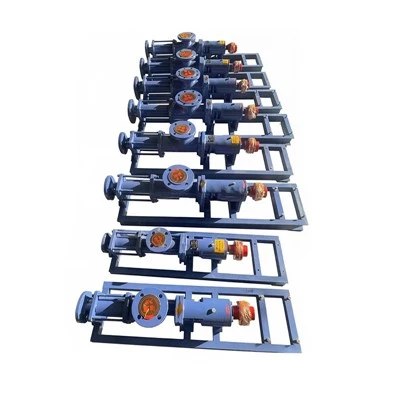

| Single Screw Pump | Progressive cavity design | Sludge, slurry, paste-like materials, and fluids containing suspended solids or fibers |
| Twin Screw Pump | Hyghspin twin-screw design | Industrial fluid transfer and high-capacity pumping |
| Triple Screw Pump | Viscous fluid and lubrication configurations | Lubricating oil, thermal oil, asphalt, syrup, and other medium- to high-viscosity fluids |
| Stainless Steel Screw Pump | 304 or 316L stainless steel | Industrial fluid transfer where stainless steel wetted components are required |
| Miniature Screw Pump | Compact screw pump configuration | Low-flow fluid transfer applications |
| High-Pressure Screw Pump | High-pressure triple-screw configuration | High-pressure lubrication and industrial oil supply systems |
Flow Rate, Pressure and Temperature Specifications
The following specifications are published for their respective screw pump series. They should not be treated as universal ratings for every screw pump configuration.
| Product Series | Flow Rate | Rated or Working Pressure | Medium Temperature |
|---|---|---|---|
| General Purpose Industrial Screw Pump | 1.0–300 m³/h | 0.3–2.2 MPa | -15–160°C |
| Progressive Cavity Screw Pump | Not specified | Not specified | Not specified |
| Viscous Fluid Triple Screw Pump | 2–260 m³/h | 0.6–3.0 MPa | ≤200°C |
| High Capacity Hyghspin Twin Screw Pump | 5–350 m³/h | 0.4–2.0 MPa | ≤180°C |
| Miniature Screw Pump | 0.01–5 m³/h | 0.2–1.0 MPa | -10–120°C |
| Stainless Steel Screw Pump | 0.5–80 m³/h | 0.3–1.6 MPa | -20–160°C |
| Lubrication High Pressure Screw Pump | 1–200 m³/h | 2.5–10 MPa | ≤120°C |
The Progressive Cavity Screw Pump has a published maximum solid particle diameter of ≤15 mm. This is a relevant specification for sludge, slurry, and fiber-containing fluids.
Materials and Pump Configurations
We offer different material and component configurations for industrial screw pumps according to the screw pump series.
| Product Series | Available Materials or Configurations |
|---|---|
| General Purpose Industrial Screw Pump | Cast iron and stainless steel |
| Stainless Steel Screw Pump | 304 and 316L stainless steel |
| Progressive Cavity Screw Pump | Rotor and stator material options |
| Triple Screw Pump | Screw materials, pump body materials, and sealing configurations |
| Twin Screw Pump | Screw materials, shaft sealing, connection dimensions, and drive configurations |
Material selection and component configurations depend on the selected pump series and operating requirements.
Custom Manufacturing Options
We support OEM/ODM manufacturing and production according to customer technical drawings or samples.
Available customization items include:
- Pump body material
- Screw material
- Rotor and stator materials for progressive cavity pumps
- Shaft sealing configuration
- Connection dimensions
- Drive configuration
- Installation layout
- Special operating requirements
For triple-screw pumps, customization can include screw materials, pump body materials, sealing forms, and connection dimensions.
For twin-screw pumps, available adjustments include screw materials, shaft seals, connection dimensions, and drive configurations.
For progressive cavity pumps, customization includes rotor geometry, stator materials, wetted component structures, and connection dimensions.
Manufacturing and Quality Inspection
We operate a manufacturing facility with a reported area of 5,000 m² and a workforce of 50 employees.
For screw pump orders, our published inspection procedures include:
- Pressure testing
- Sealing performance inspection
- Flow testing
- Third-party inspection arrangements
We can manufacture according to customer drawings or samples. For applicable orders, we can also provide production progress photos or videos.
Ordering and Supply Information
Our General Purpose Industrial Screw Pumps, Progressive Cavity Screw Pumps, Viscous Fluid Triple Screw Pumps, and Miniature Screw Pumps have published minimum order quantities of 1 unit.
Export packaging options include wooden cases and reinforced wooden cases for applicable product series.
Technical support and product configuration are handled according to the selected pump type and order requirements.
Request a Screw Pump Quotation
Send us your required flow rate, working pressure, medium name, operating temperature, and preferred pump structure. If you already have a technical drawing, sample photo, existing pump model, or required order quantity, you can send that information directly.
We will review the available screw pump series and provide the corresponding product specifications and quotation for your requirements.
