Product Features & Advantages

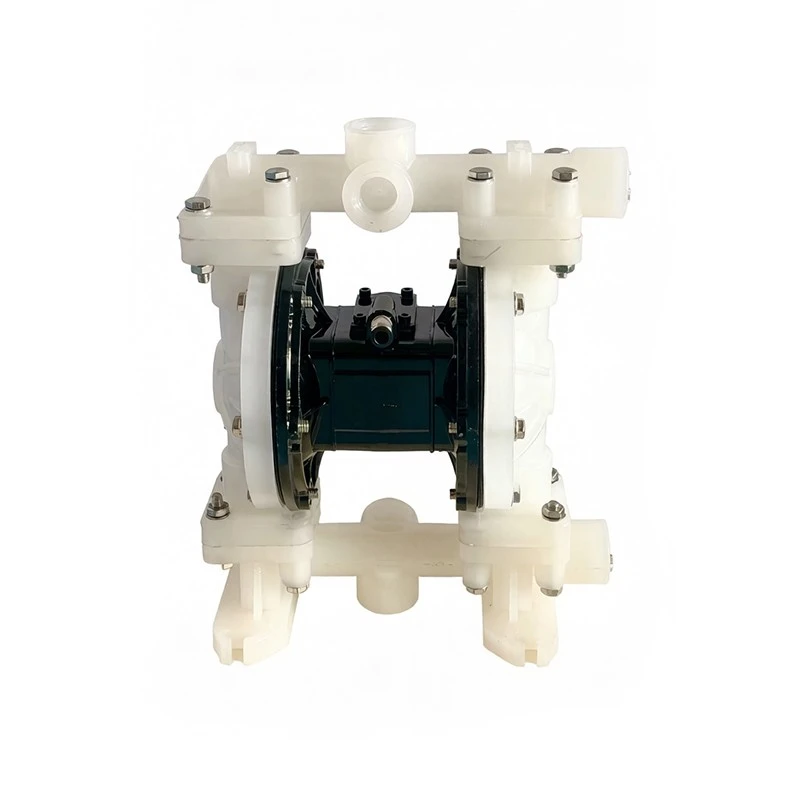

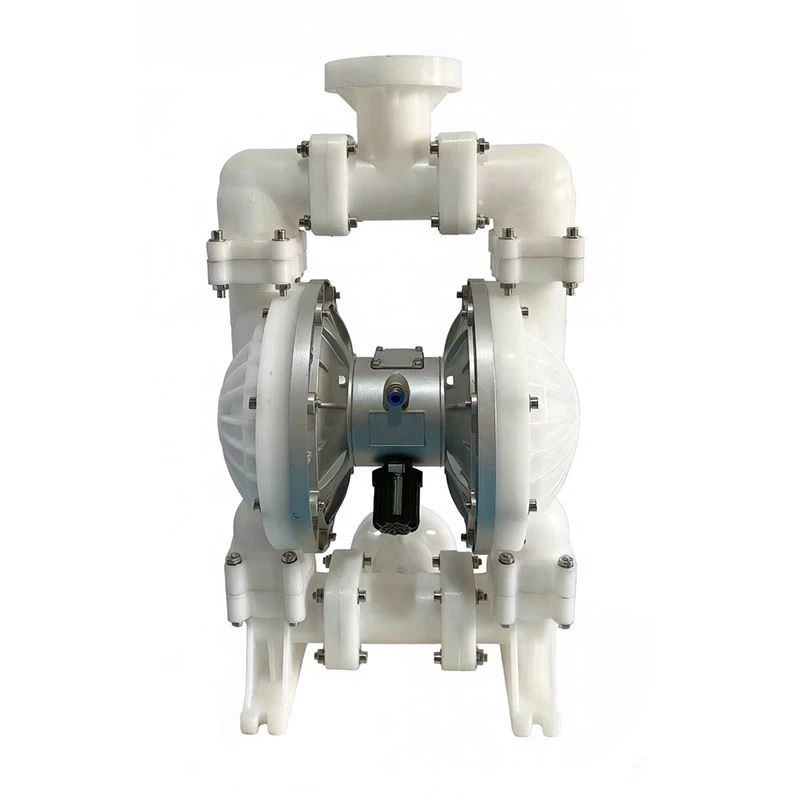

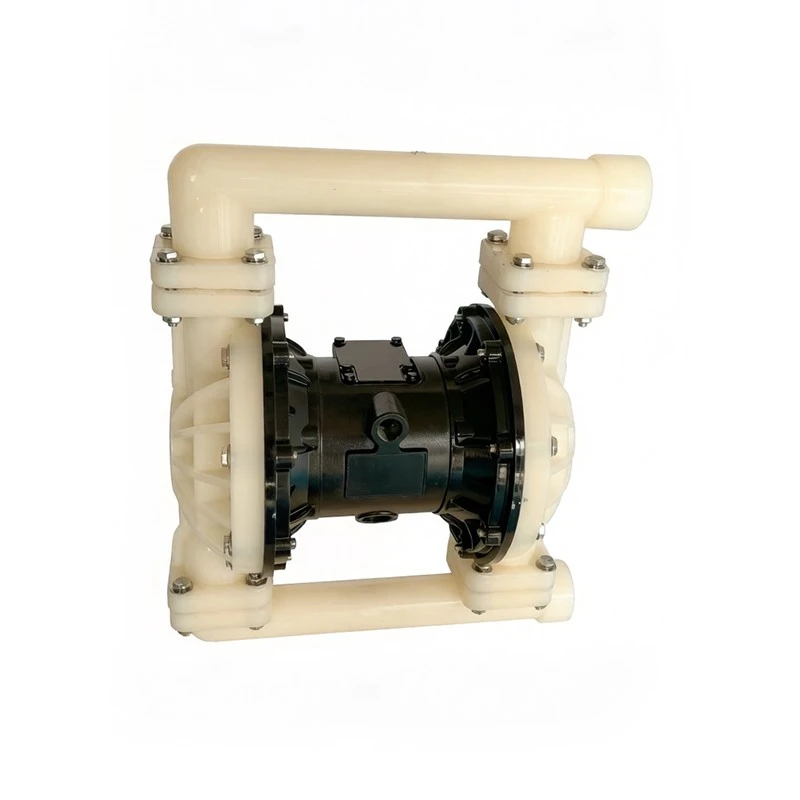

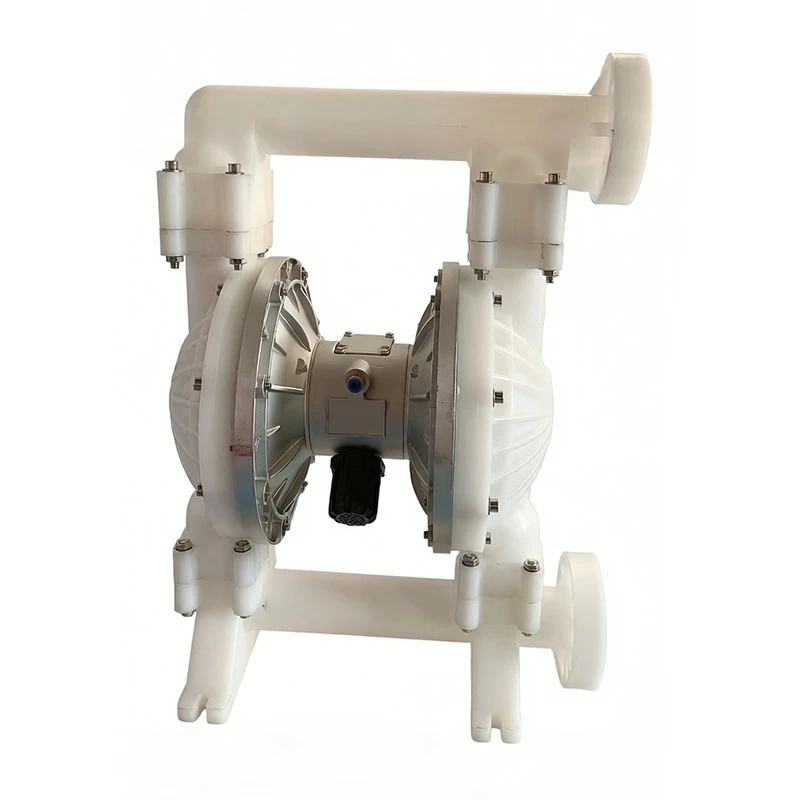

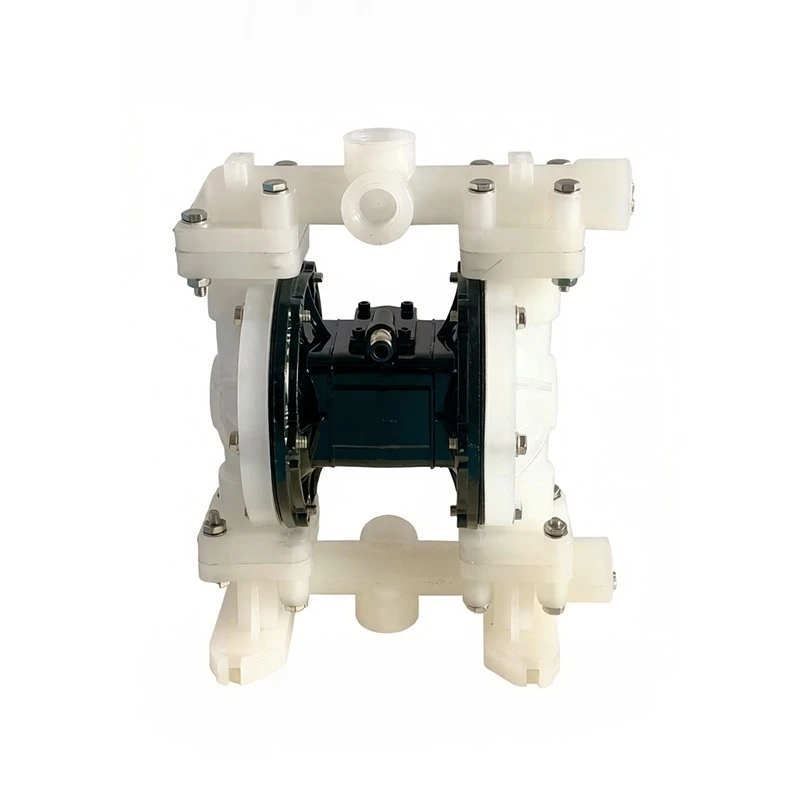

The chemical resistant diaphragm pump is designed with flow-through components made of PTFE (Teflon), fluoroplastics, and corrosion-resistant rubber materials. It is capable of withstanding strong acids, strong alkalis, high-strength solvents, and highly corrosive chemical media.

The pump adopts a seal-free diaphragm structure, ensuring zero leakage and no external medium spillage. It also features excellent self-priming capability and can handle fluids containing particles, crystals, and sediments without clogging or seizure.

The design allows dry running without damaging the equipment, making it highly reliable for demanding corrosive fluid transfer applications.

Our chemical resistant diaphragm pump is engineered to operate safely in highly corrosive environments, providing stable performance even under extreme chemical conditions.

Application Industries

The chemical resistant diaphragm pump is widely used in:

Chemical pickling processes
Electroplating wastewater treatment
Environmental wastewater treatment systems
Pharmaceutical chemical processing

Fine chemical production
Rare earth smelting industry
Corrosive liquid chemical dosing systems

It is suitable for handling strong acids, strong alkalis, corrosive liquids, particle-containing wastewater, and chemical effluents.

Company Service & Engineering Support

The company provides a complete integrated service system covering pre-sales, in-sales, and after-sales support.

Pre-Sales Technical Support

Engineers provide free selection solutions based on medium corrosivity, temperature, flow rate, and pressure conditions.

Production Transparency

Production photos and progress updates can be provided at any time during manufacturing.

Quality Assurance

100% full inspection before shipment
Third-party inspection supported on request
Fast customization for non-standard working conditions
Solutions for complex corrosive fluid handling requirements

Basic Parameters

Parameter Item	Specification Range
Applicable Media	Strong acids, strong alkalis, organic solvents, particle-containing corrosive liquids
Flow Range	0.2–120 m³/h
Working Pressure	0.2–0.8 MPa
Self-Priming Height	4–6 m
Wetted Materials	PTFE (Teflon), fluoroplastics, corrosion-resistant rubber
Drive Type	Pneumatic drive
